Home / Compatible Devices / Ingenico iSC Touch 250

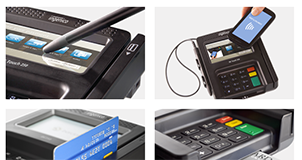

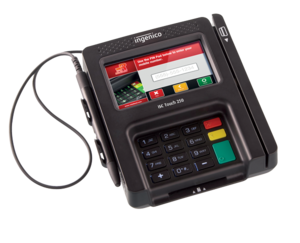

The iSC Touch 250, from Ingenico Group, is a compact, touchscreen signature capture PIN pad. It was designed for use in demanding multi-lane environments and features a 4.3″ touchscreen display that is highly resistant to impact and scratches.
The iSC Touch 250 is available from select distributors today with a version of RBA that is EMV-ready.
Here’s what you’ll need to order:
iSC Touch 250 (31P2592A)
USB Cable (296111170)
OR Serial Cable (296114811)
OR Ethernet Cable (296114829)
Power Supply (192011597; Required for all cable types)
Debit Key Injection (Key Provided by processor/loaded by distributor)
RBA Load (see chart below)
Encryption Key (see chart below)
Datacap Forms Package
Ingenico iSC Touch 250 PIN Pads can also be ordered from the distributors below – these distributors currently have access to the EMV-enabled version of RBA for the iSC Touch 250, allowing for an EMV-ready installation.
NETePay Hosted
NETePay
Tran Series
TranCloud
NETePay Hosted
NETePay
Tran Series
TranCloud
NETePay Hosted
NETePay
Tran Series
TranCloud
NETePay Hosted
NETePay
Tran Series
TranCloud
NETePay Hosted
NETePay
Tran Series
TranCloud
NETePay Hosted
NETePay
Tran Series
TranCloud
NETePay Hosted
NETePay
Tran Series
TranCloud
NETePay Hosted
NETePay
Tran Series
TranCloud
NETePay Hosted
NETePay
Tran Series
TranCloud
NETePay Hosted
NETePay
Tran Series
TranCloud
NETePay Hosted
NETePay
Tran Series
TranCloud
NETePay Hosted
NETePay
Tran Series
TranCloud
NETePay Hosted
NETePay
Tran Series
TranCloud
NETePay Hosted
NETePay
Tran Series
TranCloud
NETePay Hosted
NETePay
Tran Series
TranCloud
NETePay Hosted
NETePay
Tran Series
TranCloud
NETePay Hosted
NETePay
Tran Series
TranCloud
| Application Load | Encryption Key | SecureDeviceID | |
|---|---|---|---|
| Encrypted (recommended) | Non-Encrypted | ||
| RBA 23.0.44 | Datacap TDES DUKPT - Slot 4 | EMV_ISC250_DATACAP_E2E | N/A |
| Bluefin OnGuard - Slot 5 (PCI-Validated P2PE) | EMV_ISC250_DATACAP_ONGUARD | N/A | |
| Application Load | Encryption Key | SecureDeviceID | |
|---|---|---|---|
| Encrypted (recommended) | Non-Encrypted | ||
| RBA 23.0.44 | Datacap TDES DUKPT - Slot 4 | INGENICOISC250_DATACAP_E2E | N/A |
| Bluefin OnGuard - Slot 5 (PCI-Validated P2PE) | INGENICOISC250_DATACAP_ONGUARD | N/A | |
*Includes Datacap’s NETePay™, NETePay Hosted™, TranCloud™ and Tran™ Series products.
| Processor | Application Load | Encryption Key | SecureDeviceID | |
|---|---|---|---|---|
| Encrypted (recommended) | Non-Encrypted | |||
| BluePay | RBA 23.1.46 | BluePay TDES DUKPT or Clear - Slot 4 | EMV_ISC250_BLUEPAY_E2E | EMV_ISC250_BLUEPAY |
| Chase | RBA 23.0.44 | Chase OnGuard or Clear - Slot 5 | EMV_ISC250_PAYMENTECH_ONGUARD | EMV_ISC250_PAYMENTECH |
| First Data Rapid Connect | RBA 23.0.44 | TransArmor DUKPT or Clear - Slot 4 | EMV_ISC250_RAPIDCONNECT_E2E | EMV_ISC250_RAPIDCONNECT |
| Global Payments | RBA 23.1.46 | N/A | EMV_ISC250_GLOBALPAY | |
| Heartland | RBA 23.1.46 | Heartland Voltage | EMV_ISC250_HEARTLAND | N/A |
| TSYS | RBA 23.0.44 | TSYS Voltage Tep2 or Clear | EMV_ISC250_TSYS_VOLT | EMV_ISC250_TSYS |
| Worldpay Core 610 (Vantiv/Fifth-Third) | RBA 23.0.44 | Worldpay (Core 610) TDES DUKPT or Clear - Slot 4 | EMV_ISC250_VANTIV_E2E | EMV_ISC250_VANTIV |
| Worldpay IP (Mercury) | RBA 23.0.44 | Mercury TDES/DUKPT - Slot 4 | EMV_ISC250_MERCURY | N/A |
| Processor | Application Load | Encryption Key | SecureDeviceID | |
|---|---|---|---|---|
| Encrypted (recommended) | Non-Encrypted | |||
| BluePay | RBA 23.1.46 | BluePay TDES DUKPT or Clear - Slot 4 | INGENICOISC250_BLUEPAY_E2E | INGENICOISC250 |
| Chase | RBA 23.0.44 | Chase OnGuard or Clear - Slot 5 | INGENICOISC250_PAYMENTECH_ONGUARD | INGENICOISC250 |
| First Data Rapid Connect | RBA 23.0.44 | TransArmor DUKPT or Clear - Slot 4 | INGENICOISC250_RAPIDCONNECT_E2E | INGENICOISC250 |
| Global Payments | RBA 23.1.46 | N/A | INGENICOISC250 | |
| Heartland | RBA 23.1.46 | Heartland Voltage | INGENICOISC250_HEARTLAND_VOLT | INGENICOISC250 |
| TSYS | RBA 23.0.44 | TSYS Voltage Tep2 or Clear | INGENICOISC250_TSYS_VOLT | INGENICOISC250 |
| Worldpay Core 610 (Vantiv/Fifth-Third) | RBA 23.0.44 | Worldpay (Core 610) TDES DUKPT or Clear - Slot 4 | INGENICOISC250_VANTIV_E2E | INGENICOISC250 |
| Worldpay IP (Mercury) | RBA 23.0.44 | Mercury TDES/DUKPT - Slot 4 | INGENICOISC250_MERCURY_E2E | INGENICOISC250 |
