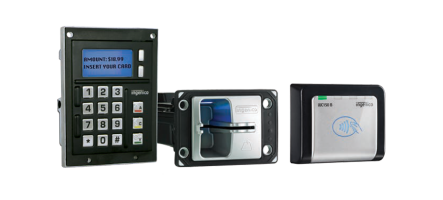

Ingenico iSelf Series

The iSelf Series, from Ingenico Group, is a group of PIN pads, Insertion and NFC readers that businesses can use to accept unattended payments in their kiosks or other self-service hardware.  iSelf Series hardware is available as the DUO (a PIN entry device and all-in-one card reader) or as the TRIO (a PIN entry device, card insertion reader and NFC module).

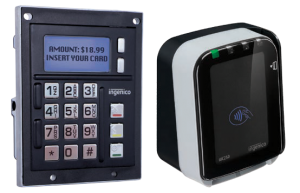

iSelf Series DUO
The Ingenico iSelf Series / DUO is available from select distributors today with a version of RBA that is EMV-ready. Here’s what you’ll need to order:
  1. iUP 250 V4 PIN Pad (20-05-0011)
  2. iUC 250 Mag, Chip, NFC Reader (20-05-0010)
  3. Module Cable (20-05-1015)
  4. Power Supply (20-05-1017)
  5. Power Cable (20-05-1019)
  6. USB Cable (20-05-1080) or Ethernet Cable (20-05-1013) or Serial Cable (20-05-1016)
  7. Debit Key Injection (Key provided by processor/loaded by distributor)
  8. Datacap Forms Package

Download the Brochure

iSelf Series DUO Brochure

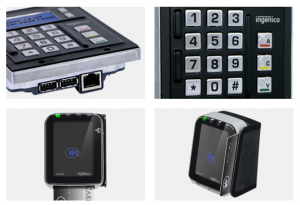

View the Specs

iSelf Series Duo Specs
iSelf Series Trio
The Ingenico iSelf Series Trio is available from select distributors today with a version of RBA that is EMV-ready. Here’s what you’ll need to order:

  1. iUP 250 PIN Pad (20-05-0011)
  2. iUR 250 MSR (20-05-0013)
  3. iUC 150B NFC Reader (20-05-0005)
  4. Module Cables (20-05-1015 (Qty -2))
  5. USB cable (20-05-1080) or Serial cable (20-05-1079) or Ethernet cable (20-05-1013)
  6. Power cable (20-05-1018)
  7. Power supply (20-05-1017)
  8. Debit Key Injection (Key provided by processor/loaded by distributor)
  9. Datacap Forms Package

Download the Brochure

iSelf Series Trio brochure

View the Specs

iSelf Series Trio specifications

Distribution Partners

iSelf Series PIN Pads can also be ordered from the distributors below – these distributors currently have access to the EMV-enabled version of RBA for the Ingenico iSelf Series, allowing for an EMV-ready installation.

UCP, Inc

The iSelf Series is US EMV certified with the following Processors and Datacap products today:

NETePay Hosted

NETePay

Tran Series

TranCloud

Chase

NETePay Hosted

NETePay

Tran Series

TranCloud

Clearent Logo

NETePay Hosted

NETePay

Tran Series

TranCloud

Cygnus Payments

NETePay Hosted

NETePay

Tran Series

TranCloud

EMS

NETePay Hosted

NETePay

Tran Series

TranCloud

Electronic Payments

NETePay Hosted

NETePay

Tran Series

TranCloud

First Data

NETePay Hosted

NETePay

Tran Series

TranCloud

Global Payments

NETePay Hosted

NETePay

Tran Series

TranCloud

NETePay Hosted

NETePay

Tran Series

TranCloud

IMS

NETePay Hosted

NETePay

Tran Series

TranCloud

NETePay Hosted

NETePay

Tran Series

TranCloud

NETePay Hosted

NETePay

Tran Series

TranCloud

BOLD Integrated

NETePay Hosted

NETePay

Tran Series

TranCloud

Truist - BBT Logo

NETePay Hosted

NETePay

Tran Series

TranCloud

TSYS

NETePay Hosted

NETePay

Tran Series

TranCloud

FIS Worldpay

NETePay Hosted

NETePay

Tran Series

TranCloud

NETePay Hosted™ Secure Device IDs

Application Load Encryption Key SecureDeviceID
Encrypted (recommended) Non-Encrypted
RBA 23.0.44 Datacap TDES DUKPT - Slot 4 EMV_IUP250_DATACAP_E2E (PCI Validated P2PE)
EMV_IUP250_MONETARY_E2E		 N/A

*Includes Datacap’s NETePay™, NETePay Hosted™, TranCloud™ and Tran™ Series products.

Processor-Specific Secure Device IDs

Processor Application Load Encryption Key SecureDeviceID
Encrypted (recommended) Non-Encrypted
Chase RBA 23.0.44 Chase OnGuard or Clear - Slot 5 EMV_IUP250_PAYMENTECH_ONGUARD EMV_IUP250_PAYMENTECH
First Data Rapid Connect RBA 23.0.44 TransArmor DUKPT or Clear - Slot 4 EMV_IUP250_RAPIDCONNECT_E2E EMV_IUP250_RAPIDCONNECT
Global Payments RBA 23.0.44 N/A EMV_ISC250_GLOBALPAY
Heartland RBA 23.1.46 Heartland Voltage EMV_IUP250_HEARTLAND N/A
TSYS RBA 23.0.44 TSYS Voltage Tep2 or Clear EMV_IUP250_TSYS_VOLT EMV_IUP250_TSYS
Worldpay IP (Mercury) RBA 23.0.44 Mercury TDES/DUKPT - Slot 4 EMV_IUP250_MERCURY N/A

Learn more about the Ingenico iSelf Series
