Home / Compatible Devices / Ingenico iUC 285

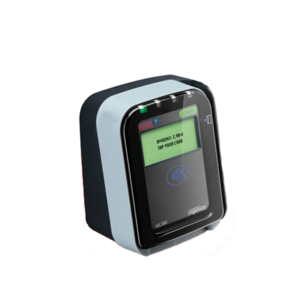

The iUC 285, from Ingenico Group, is a standalone contact and contactless reader for self-service payments. It accepts all payment types and is perfect for vending machines and kiosks.
The iUC 285 is available from select distributors today with a version of RBA that is EMV-ready.
Here’s what you’ll need to order:
iUC285 (20-05-0070)
USB Cable (90-05-1002); Required to power device.
Serial cable (20-05-1016)
RBA Load – (see Chart Below)
Encryption Key (see below)
Datacap Forms Package
Ingenico iUC 285 PIN Pads can also be ordered from the distributors below – these distributors currently have access to the EMV-enabled version of RBA for the iUC 285, allowing for an EMV-ready installation.
NETePay Hosted
NETePay
Tran Series
TranCloud
NETePay Hosted
NETePay
Tran Series
TranCloud
NETePay Hosted
NETePay
Tran Series
TranCloud
NETePay Hosted
NETePay
Tran Series
TranCloud
NETePay Hosted
NETePay
Tran Series
TranCloud
NETePay Hosted
NETePay
Tran Series
TranCloud
NETePay Hosted
NETePay
Tran Series
TranCloud
NETePay Hosted
NETePay
Tran Series
TranCloud
NETePay Hosted
NETePay
Tran Series
TranCloud
NETePay Hosted
NETePay
Tran Series
TranCloud
NETePay Hosted
NETePay
Tran Series
TranCloud
NETePay Hosted
NETePay
Tran Series
TranCloud
NETePay Hosted
NETePay
Tran Series
TranCloud
NETePay Hosted
NETePay
Tran Series
TranCloud
NETePay Hosted
NETePay
Tran Series
TranCloud
NETePay Hosted
NETePay
Tran Series
TranCloud
NETePay Hosted
NETePay
Tran Series
TranCloud
| Application Load | Encryption Key | SecureDeviceID | |
|---|---|---|---|
| Encrypted (recommended) | Non-Encrypted | ||
| RBA 23.0.44 | Datacap TDES DUKPT - Slot 4 | EMV_IUC285_DATACAP_ONGUARD (PCI Validated P2PE) EMV_IUC285_DATACAP_E2E |
N/A |
*Includes Datacap’s NETePay™, NETePay Hosted™, TranCloud™ and Tran™ Series products.
| Processor | Application Load | Encryption Key | SecureDeviceID | |
|---|---|---|---|---|
| Encrypted (recommended) | Non-Encrypted | |||
| Chase | RBA 23.0.44 | Chase OnGuard or Clear - Slot 5 | EMV_IUC285_PAYMENTECH_ONGUARD | EMV_IUC285_PAYMENTECH |
| First Data Rapid Connect | RBA 23.0.44 | TransArmor DUKPT or Clear - Slot 4 | EMV_IUC285_RAPIDCONNECT_E2E | EMV_IUC285_RAPIDCONNECT |
| Global Payments | RBA 23.0.44 | N/A | EMV_ISC250_GLOBALPAY | |
| Heartland | RBA 23.1.46 | Heartland Voltage | EMV_IUC285_HEARTLAND | N/A |
| TSYS | RBA 23.0.44 | TSYS Voltage Tep2 or Clear | EMV_IUC285_TSYS_VOLT | EMV_IUC285_TSYS |
| Worldpay (Core610) | RBA 23.0.44 | Worldpay (Core 610) TDES DUKPT - Slot 4 | EMV_IUC285_VANTIV_E2E | N/A |
| Worldpay IP (Mercury) | RBA 23.0.44 | Mercury TDES/DUKPT - Slot 4 | EMV_IUC285_MERCURY | N/A |
