Home / Compatible Devices / Ingenico iWL 258

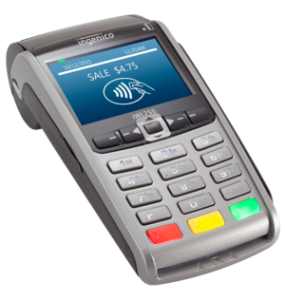

The iWL 258, from Ingenico Group, is a mobile PIN Pad with a built-in receipt printer and a 2.81” color display. It accepts all payment types and is perfect for Pay-at-Table. The iWL 258 connects via Ethernet (recommended) or Bluetooth. This device is comparable to the Move/5000, which is part of Ingenico’s new TETRA line of PIN pads.
The iWL 258 is available from select distributors today with a version of RBA that is EMV-ready.
Here’s what you’ll need to order:
iWL258 (01P2733B)
Docking Station (iWL200-01P1481A)
RBA Load (See chart below)
PIN key
Encryption Key (see chart below)
Datacap forms package
Ingenico iWL 258 PIN Pads can also be ordered from the distributors below – these distributors currently have access to the EMV-enabled version of RBA for the iWL 258, allowing for an EMV-ready installation.
NETePay Hosted
NETePay
TranCloud
NETePay Hosted
NETePay
TranCloud
NETePay Hosted
NETePay
TranCloud
NETePay Hosted
NETePay
TranCloud
NETePay Hosted
NETePay
TranCloud
NETePay Hosted
NETePay
TranCloud
NETePay Hosted
NETePay
TranCloud
NETePay Hosted
NETePay
TranCloud
NETePay Hosted
NETePay
TranCloud
NETePay Hosted
NETePay
TranCloud
NETePay Hosted
NETePay
TranCloud
NETePay Hosted
NETePay
TranCloud
NETePay Hosted
NETePay
TranCloud
NETePay Hosted
NETePay
TranCloud
NETePay Hosted
NETePay
TranCloud
NETePay Hosted
NETePay
TranCloud
| Application Load | Encryption Key | SecureDeviceID | |
|---|---|---|---|
| Encrypted (recommended) | Non-Encrypted | ||
| RBA 23.00.12 | Datacap TDES DUKPT - Slot 4 | EMV_IWL258_DATACAP_E2E EMV_IWL258_MONETARY_E2E |
N/A |
*Includes Datacap’s NETePay™, NETePay Hosted™, TranCloud™ and Tran™ Series products.
| Processor | Application Load | Encryption Key | SecureDeviceID | |
|---|---|---|---|---|
| Encrypted (recommended) | Non-Encrypted | |||
| BluePay | RBA 21.5.6 | BluePay TDES DUKPT - Slot 4 | Contact Datacap for SecureDeviceID | Contact Datacap for SecureDeviceID |
| Chase | RBA 23.00.12 | Chase OnGuard - Slot 5 | EMV_IWL258_PAYMENTECH_ONGUARD | N/A |
| First Data Rapid Connect | RBA 23.00.12 | TransArmor DUKPT - Slot 4 | EMV_IWL258_RAPIDCONNECT_E2E | N/A |
| Heartland | RBA 21.5.6 | Heartland Voltage | EMV_IWL250_HEARTLAND | N/A |
| TSYS | RBA 23.00.12 | TSYS Voltage Tep2 | EMV_IWL258_TSYS_VOLT | N/A |
| Worldpay Core 610 (Vantiv/Fifth-Third) | RBA 23.00.12 | Worldpay (Core 610) TDES DUKPT - Slot 4 | EMV_IWL258_VANTIV_E2E | N/A |
| Worldpay IP (MercuryPay) | RBA 23.00.12 | Mercury TDES/DUKPT - Slot 4 | EMV_IWL258_MERCURY | N/A |
