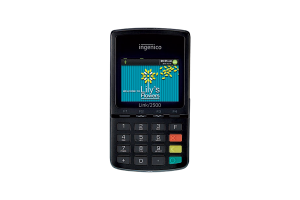

The Link/2500, from Ingenico Group, is a pocket-sized PIN pad for EMV mobility. It accepts all payment methods: EMV, chip & PIN, magstripe and NFC/contactless transactions and has a 2.4’’ color display. The Link device is comparable to Ingenico’s iSMP4 and iCMP devices. It can connect via Ethernet or Bluetooth.
The Link/2500 is available from select distributors today with a version of UPP that is EMV-ready.
Here’s what you’ll need to order:
Link/2500 (PMF30912010T )
USB Cable (192057387)
Power Supply (192049533)
Debit Key Injection (Key Provided by processor/loaded by distributor) paired with Ingenico MDK for RKI (Remote Key Injection) support
Encryption Key (see chart below)
UPP Load (see chart below)
Datacap Forms Package
+ other Link/2500 accessories
Link/2500 PIN Pads can also be ordered from the distributors below – these distributors currently have access to the EMV-enabled version of UPP for the Ingenico Link/2500, allowing for an EMV-ready installation.
NETePay Hosted
NETePay
TranCloud
DC Direct
NETePay Hosted
NETePay
TranCloud
DC Direct
NETePay Hosted
NETePay
TranCloud
DC Direct
NETePay Hosted
NETePay
TranCloud
DC Direct
NETePay Hosted
NETePay
TranCloud
DC Direct
NETePay Hosted
NETePay
TranCloud
DC Direct
NETePay Hosted
NETePay
TranCloud
DC Direct
NETePay Hosted
NETePay
TranCloud
DC Direct
NETePay Hosted
NETePay
TranCloud
DC Direct
NETePay Hosted
NETePay
TranCloud
DC Direct
NETePay Hosted
NETePay
TranCloud
DC Direct
NETePay Hosted
NETePay
TranCloud
DC Direct
NETePay Hosted
NETePay
TranCloud
DC Direct
NETePay Hosted
NETePay
TranCloud
DC Direct
NETePay Hosted
NETePay
TranCloud
DC Direct
NETePay Hosted
NETePay
TranCloud
DC Direct
NETePay Hosted
NETePay
TranCloud
DC Direct
NETePay Hosted
NETePay
TranCloud
DC Direct
| Application Load | Encryption Key | SecureDeviceID | |
|---|---|---|---|
| Encrypted (recommended) | Non-Encrypted | ||
| UPP 7.80.44 | Datacap TDES DUKPT - Slot 4 | EMV_LINK2500_DATACAP_E2E | N/A |
| UPP 7.80.44 | Bluefin OnGuard - Slot 5 (PCI-Validated P2PE) | EMV_LINK2500_DATACAP_ONGUARD | N/A |
| Application Load | Encryption Key | SecureDeviceID | |
|---|---|---|---|
| Encrypted (recommended) | Non-Encrypted | ||
| UPP 7.80.44 | Datacap TDES DUKPT - Slot 4 | INGENICOLINK2500_DATACAP_E2E | N/A |
| UPP 7.80.44 | Bluefin OnGuard - Slot 5 (PCI-Validated P2PE) | INGENICOLINK2500_DATACAP_ONGUARD | N/A |
*Includes Datacap’s NETePay™, NETePay Hosted™, TranCloud™ and Tran™ Series products.
PCI-Validated P2PE is not supported on DC Direct Ingenico.
| Processor | Application Load | Encryption Key | SecureDeviceID | |
|---|---|---|---|---|
| Encrypted (recommended) | Non-Encrypted | |||
| Chase | UPP 7.80.44 | Chase OnGuard - Slot 5 | EMV_LINK2500_PAYMENTECH_ONGUARD | N/A |
| EVO | UPP 7.80.44 | EVO Snap TDES/DUKPT (914D) - Slot 5 | EMV_LINK2500_EVO | N/A |
| First Data Rapid Connect | UPP 7.80.01 | TransArmor DUKPT - Slot 4 | EMV_LINK2500_RAPIDCONNECT_E2E | N/A |
| Global Payments | UPP 7.80.44 | Global Voltage | EMV_LINK2500_GLOBALPAY_VOLT | N/A |
| Heartland | UPP 7.80.44 | Heartland Voltage | EMV_LINK2500_HEARTLAND | N/A |
| TSYS | UPP 7.80.44 | TSYS Voltage Tep2 | EMV_LINK2500_TSYS_VOLT | N/A |
| Worldpay IP (MercuryPay) | UPP 7.80.44 | Mercury TDES/DUKPT - Slot 4 | EMV_LINK2500_MERCURY | N/A |
| Worldpay (Core 610) | UPP 7.80.44 | Worldpay (Core 610) TDES DUKPT - Slot 4 | EMV_LINK2500_VANTIV_E2E | N/A |
| Processor | Application Load | Encryption Key | SecureDeviceID | |
|---|---|---|---|---|
| Encrypted (recommended) | Non-Encrypted | |||
| Chase | UPP 7.80.44 | Chase OnGuard - Slot 5 | INGENICOLINK2500_PAYMENTECH_ONGUARD | N/A |
| EVO | UPP 7.80.44 | EVO Snap TDES/DUKPT (914D) - Slot 5 | INGENICOLINK2500_EVO_E2E | N/A |
| First Data Rapid Connect | UPP 7.80.01 | TransArmor DUKPT - Slot 4 | INGENICOLINK2500_RAPIDCONNECT_E2E | N/A |
| Global Payments | UPP 7.80.44 | Global Voltage | INGENICOLINK2500_GLOBAL_VOLT | N/A |
| Heartland | UPP 7.80.44 | Heartland Voltage | INGENICOLINK2500_HEARTLAND_VOLT | N/A |
| TSYS | UPP 7.80.44 | TSYS Voltage Tep2 | INGENICOLINK2500_TSYS_VOLT | N/A |
| Worldpay IP (MercuryPay) | UPP 7.80.44 | Mercury TDES/DUKPT - Slot 4 | INGENICOLINK2500_MERCURY_E2E | N/A |
| Worldpay (Core 610) | UPP 7.80.44 | Worldpay (Core 610) TDES DUKPT - Slot 4 | INGENICOLINK2500_VANTIV_E2E | N/A |
