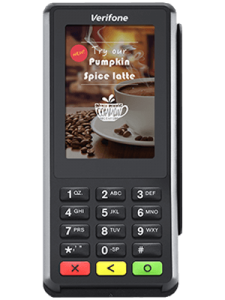

The P400 PIN pad, from Verifone, is a cost-effective PIN pad with a 3.5” color display and touchscreen. It accepts all transaction types such as EMV/MSR and NFC contactless. This PIN pad can be connected via USB, Serial or Ethernet.
The P400 is available from select distributors today with a version of XPI that is EMV-ready.
Here’s what you’ll need to order:
Verifone P400 (M435-003-01-NAA-5)
XPI Application (see chart below)
Encryption Key (see chart below)
Power Cable (PWR435-001-01-A) & Serial Cable (CBL282-031-02-A)
OR USB Cable (CBL282-038-01-A) OR Ethernet Cable (CBL282-005-02-B)
Datacap Forms Package
Verifone P400 PIN Pads can also be ordered from the distributors below – these distributors currently have access to the EMV-enabled version of XPI for the P400, allowing for an EMV-ready installation.
Via NETePay Hosted
Via NETePay Hosted
Via NETePay Hosted
Via NETePay Hosted
NETePay
Tran Series
TranCloud
Via NETePay Hosted
NETePay
Tran Series
TranCloud
Via NETePay Hosted
NETePay
Tran Series
TranCloud
Via NETePay Hosted
Via NETePay Hosted
Via NETePay Hosted
Via NETePay Hosted
Via NETePay Hosted
Via NETePay Hosted
NETePay
Via NETePay Hosted
NETePay
Tran Series
TranCloud
NETePay
TranCloud
NETePay
| Application Load | Encryption Key | SecureDeviceID | |
|---|---|---|---|
| Encrypted (recommended) | Non-Encrypted | ||
| XPI 20.04.14 | Datacap TDES DUKPT | EMV_P400_DATACAP_E2E | N/A |
| Bluefin TDES DUKPT (PCI-Validated P2PE) | EMV_P400_DATACAP_BLUEFIN | N/A | |
| XPI 20.00.10 | Datacap TDES DUKPT (Global Canada) | P400GlobalDatacapE2E |
N/A |
| Bluefin TDES DUKPT (PCI-Validated P2PE via Global Canada) | P400GlobalDatacapBlueFin |
N/A | |
| XPI 20.00.18.07 | Datacap TDES DUKPT (Chase Canada) | P400PaymentechDatacapE2E |
N/A |
| Bluefin TDES DUKPT (PCI-Validated P2PE via Chase Canada) | P400PaymentechDatacapBlueFin |
N/A | |
| Application Load | Encryption Key | SecureDeviceID | |
|---|---|---|---|
| Encrypted (recommended) | Non-Encrypted | ||
| XPI 20.04.14 | Datacap TDES DUKPT | VERIFONEP400_DATACAP_E2E | N/A |
*Includes Datacap’s NETePay™, NETePay Hosted™, TranCloud™ and Tran™ Series products.
| Processor | Application Load | Encryption Key | SecureDeviceID | |
|---|---|---|---|---|
| Encrypted (recommended) | Non-Encrypted | |||
| First Data Rapid Connect | XPI 20.04.14 | TransArmor DUKPT | EMV_P400_RAPIDCONNECT_E2E | N/A |
| TSYS* | XPI 20.04.14 | N/A | N/A | EMV_P400_TSYS |
| Worldpay IP (MercuryPay) | XPI 19.01.21.00 | Mercury TDES/DUKPT - Data Variant | EMV_P400_MERCURY | N/A |
| Moneris - POSPAD (NETePay) | POSPAD | MonerisPOSPAD | N/A | |
| Moneris - POSPAD (TranCloud) | POSPAD | EMV_P400_MONERIS_POSPAD | N/A | |
| Global Payments Canada | XPI 20.04.14 | Coming Soon | P400Global | |
| Processor | Application Load | Encryption Key | SecureDeviceID | |
|---|---|---|---|---|
| Encrypted (recommended) | Non-Encrypted | |||
| First Data Rapid Connect | XPI 20.04.14 | TransArmor DUKPT | VERIFONEP400_RAPIDCONNECT_E2E | N/A |
| TSYS* | XPI 20.04.14 | N/A | N/A | VERIFONEP400 |
| Worldpay IP (MercuryPay) | XPI 19.01.21.00 | Mercury TDES/DUKPT - Data Variant | VERIFONEP400_MERCURY_E2E | N/A |
*Encryption available via NETePay Hosted
