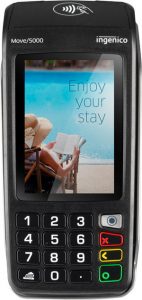

The Move/5000, from Ingenico Group, is a mobile PIN Pad with a built-in thermal receipt printer and a 3.5” color touchscreen display. It accepts all payment types and is perfect for Pay-at-Table. The Move/5000 connects via Ethernet. Bluetooth connectivity coming soon. This device is comparable to Ingenico’s iWL 258.
The Move/5000 is available from select distributors today with a version of UPP that is EMV-ready.
Here’s what you’ll need to order:
Move/5000 (PWB30911972T)
USB Cable (296109807)
Power Supply (192042724)
Optional Docking Station (PWN30110969A)
Debit Key Injection (Key Provided by processor/loaded by distributor) paired with Ingenico MDK for RKI (Remote Key Injection) support
UPP Load (see chart below)
Encryption Key (see chart below)
Datacap Forms Package
Ingenico Move/5000 PIN Pads can also be ordered from the distributors below – these distributors currently have access to the EMV-enabled version of UPP for the Move/5000, allowing for an EMV-ready installation.
NETePay Hosted
NETePay
TranCloud
DC Direct
NETePay Hosted
NETePay
TranCloud
DC Direct
NETePay Hosted
NETePay
TranCloud
DC Direct
NETePay Hosted
NETePay
TranCloud
DC Direct
NETePay Hosted
NETePay
TranCloud
DC Direct
NETePay Hosted
NETePay
TranCloud
DC Direct
NETePay Hosted
NETePay
TranCloud
DC Direct
NETePay Hosted
NETePay
TranCloud
DC Direct
NETePay Hosted
NETePay
TranCloud
DC Direct
NETePay Hosted
NETePay
TranCloud
DC Direct
NETePay Hosted
NETePay
TranCloud
DC Direct
NETePay Hosted
NETePay
TranCloud
DC Direct
NETePay Hosted
NETePay
TranCloud
DC Direct
NETePay Hosted
NETePay
TranCloud
DC Direct
NETePay Hosted
NETePay
TranCloud
DC Direct
NETePay Hosted
NETePay
TranCloud
DC Direct
NETePay Hosted
NETePay
TranCloud
DC Direct
NETePay Hosted
NETePay
TranCloud
DC Direct
| Application Load | Encryption Key | SecureDeviceID | |
|---|---|---|---|
| Encrypted (recommended) | Non-Encrypted | ||
| UPP 7.80.44 | Datacap TDES DUKPT - Slot 4 | EMV_MOVE5000_DATACAP_E2E | N/A |
| UPP 7.80.44 | Bluefin OnGuard - Slot 5 (PCI-Validated P2PE) | EMV_MOVE5000_DATACAP_ONGUARD | N/A |
| Application Load | Encryption Key | SecureDeviceID | |
|---|---|---|---|
| Encrypted (recommended) | Non-Encrypted | ||
| UPP 7.80.44 | Datacap TDES DUKPT - Slot 4 | INGENICOMOVE5000_DATACAP_E2E | N/A |
| UPP 7.80.44 | Bluefin OnGuard - Slot 5 (PCI-Validated P2PE) | INGENICOMOVE5000_DATACAP_ONGUARD | N/A |
*Includes Datacap’s NETePay™, NETePay Hosted™, TranCloud™ and Tran™ Series products.
PCI-Validated P2PE is not supported on DC Direct Ingenico.
| Processor | Application Load | Encryption Key | SecureDeviceID | |
|---|---|---|---|---|
| Encrypted (recommended) | Non-Encrypted | |||
| Chase | UPP 7.80.44 | Chase OnGuard - Slot 5 | EMV_MOVE5000_PAYMENTECH_ONGUARD | N/A |
| EVO | UPP 7.80.44 | EVO Snap TDES/DUKPT (914D) - Slot 5 | EMV_MOVE5000_EVO | N/A |
| First Data Rapid Connect | UPP 7.80.01 | TransArmor DUKPT - Slot 4 | EMV_MOVE5000_RAPIDCONNECT_E2E | N/A |
| Global Payments | UPP 7.80.44 | Global Voltage | EMV_MOVE5000_GLOBALPAY_VOLT | N/A |
| Heartland | UPP 7.80.44 | Heartland Voltage | EMV_MOVE5000_HEARTLAND | N/A |
| TSYS | UPP 7.80.44 | TSYS Voltage Tep2 | EMV_MOVE5000_TSYS_VOLT | N/A |
| Worldpay IP (MercuryPay) | UPP 7.80.44 | Mercury TDES/DUKPT - Slot 4 | EMV_MOVE5000_MERCURY | N/A |
| Worldpay (Core 610) | UPP 7.80.44 | Worldpay (Core 610) TDES DUKPT - Slot 4 | EMV_MOVE5000_VANTIV_E2E | N/A |
| Processor | Application Load | Encryption Key | SecureDeviceID | |
|---|---|---|---|---|
| Encrypted (recommended) | Non-Encrypted | |||
| Chase | UPP 7.80.44 | Chase OnGuard - Slot 5 | INGENICOMOVE5000_PAYMENTECH_ONGUARD | N/A |
| EVO | UPP 7.80.44 | EVO Snap TDES/DUKPT (914D) - Slot 5 | INGENICOMOVE5000_EVO_E2E | N/A |
| First Data Rapid Connect | UPP 7.80.01 | TransArmor DUKPT - Slot 4 | INGENICOMOVE5000_RAPIDCONNECT_E2E | N/A |
| Global Payments | UPP 7.80.44 | Global Voltage | INGENICOMOVE5000_GLOBAL_VOLT | N/A |
| Heartland | UPP 7.80.44 | Heartland Voltage | INGENICOMOVE5000_HEARTLAND_VOLT | N/A |
| TSYS | UPP 7.80.44 | TSYS Voltage Tep2 | INGENICOMOVE5000_TSYS_VOLT | N/A |
| Worldpay IP (MercuryPay) | UPP 7.80.44 | Mercury TDES/DUKPT - Slot 4 | INGENICOMOVE5000_MERCURY_E2E | N/A |
| Worldpay (Core 610) | UPP 7.80.44 | Worldpay (Core 610) TDES DUKPT - Slot 4 | INGENICOMOVE5000_VANTIV_E2E | N/A |
